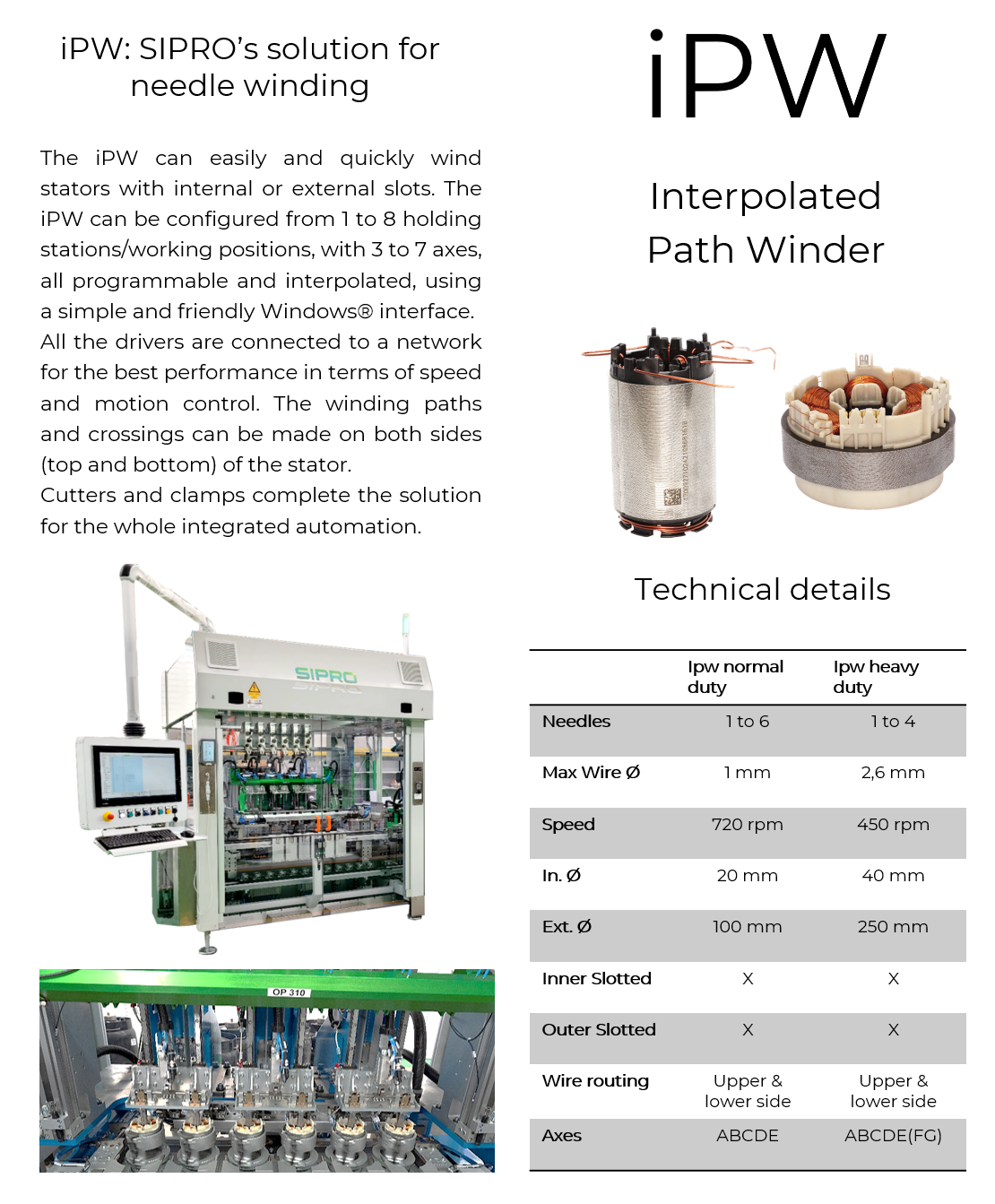

INTERPOLATED WINDERS





With iPW inner slotted or outer slotted STATORS, RESOLVERS... can be easily and quickly wound. iPW can be configured from 1 up to 6 holding stations / working positions, with 3,4,5 or 6 axes all controlled and programmable using a simple and friendly Windows® interface.

All drivers are linked in EtherCat net, for the best performances in term of speed and Motion Control. The winding paths and the crossovers can be done on both sides (top and bottom) of the stator. Cutters and clamps complete the solution for the whole winding process. Automatic load - unload devices can be added, for a full integrated automation.

iPW / x – [HP]

X = number of spindles (from 1 to 6)
[ HP ] = high power for heavy duty applications



MAIN FEATURES
High speed production rate
High accuracy and precision
High reliability
Full and easy programmable system
Quick set up

All Sipro equipments have the CE certification



VIDEO
Video-iPW02 HP
Video-iPW04
