MULTI SPINDLE WINDING MACHINES





  Our multispindle winding machines offer the complete automation for most bobbin winding requirements. High performances and quality are the most important items which we supply with our products.

- solid design, reliability;
- patented spindle transmission;
- high speed, short cycle times;
- high precision;
- stand alone machine with operator, with automatic loading / unloading , directly integrated in automatc lines;
- axial/radial tag wrapping, pnuematic cutters, single wire-double wire, taping, stripping, tailstock, programmable wire tensioners, wire tension monitoring, thermobonding, ...;
- PC controlled with Windows user interface;
- simple teach in programming;
- remote assistance.

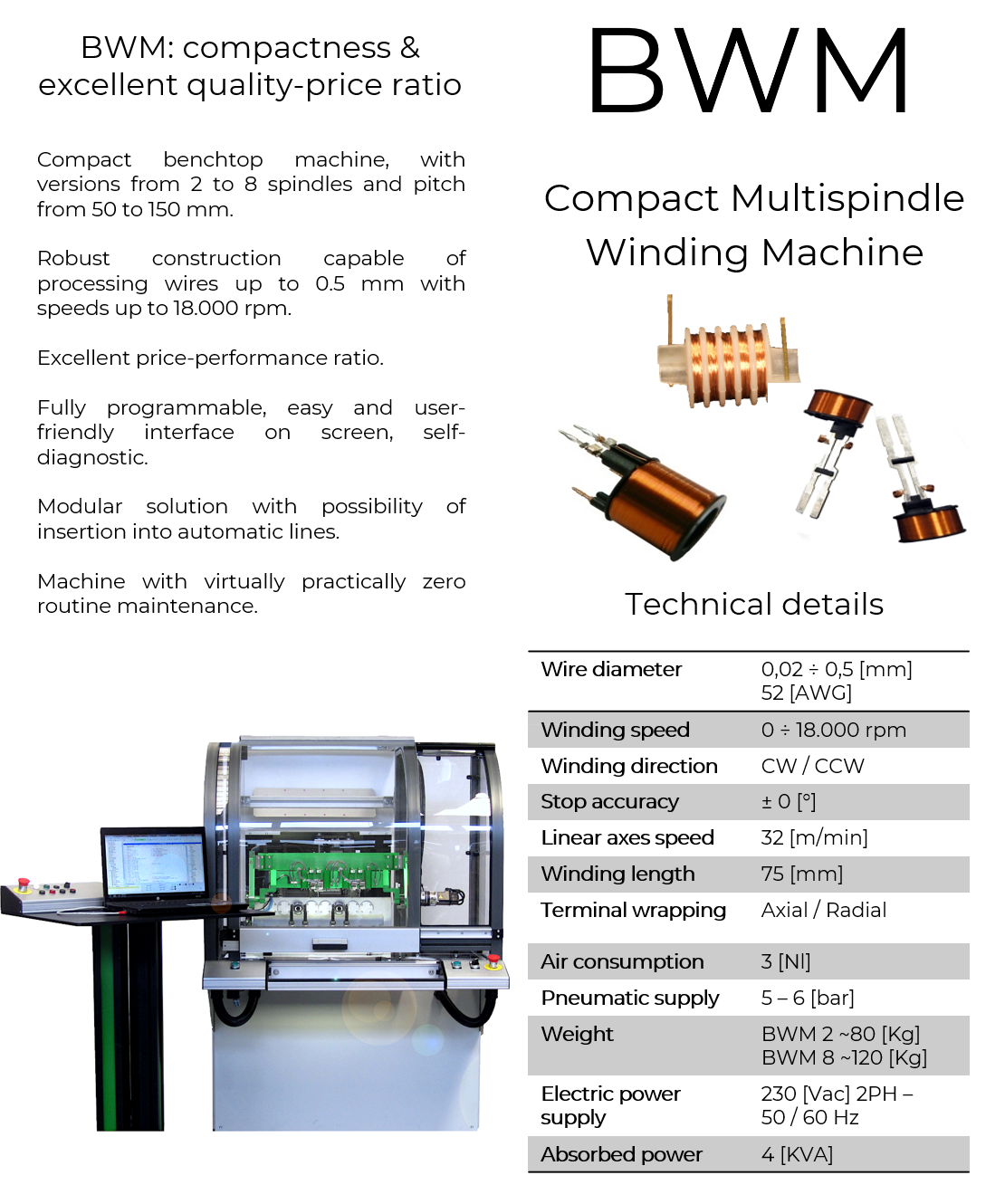

  • BWM - NORMAL DUTY - : wire diam. 0.02-0.5 [mm] - spindle no. 2..8 , spindle pitch 50-80 [mm]

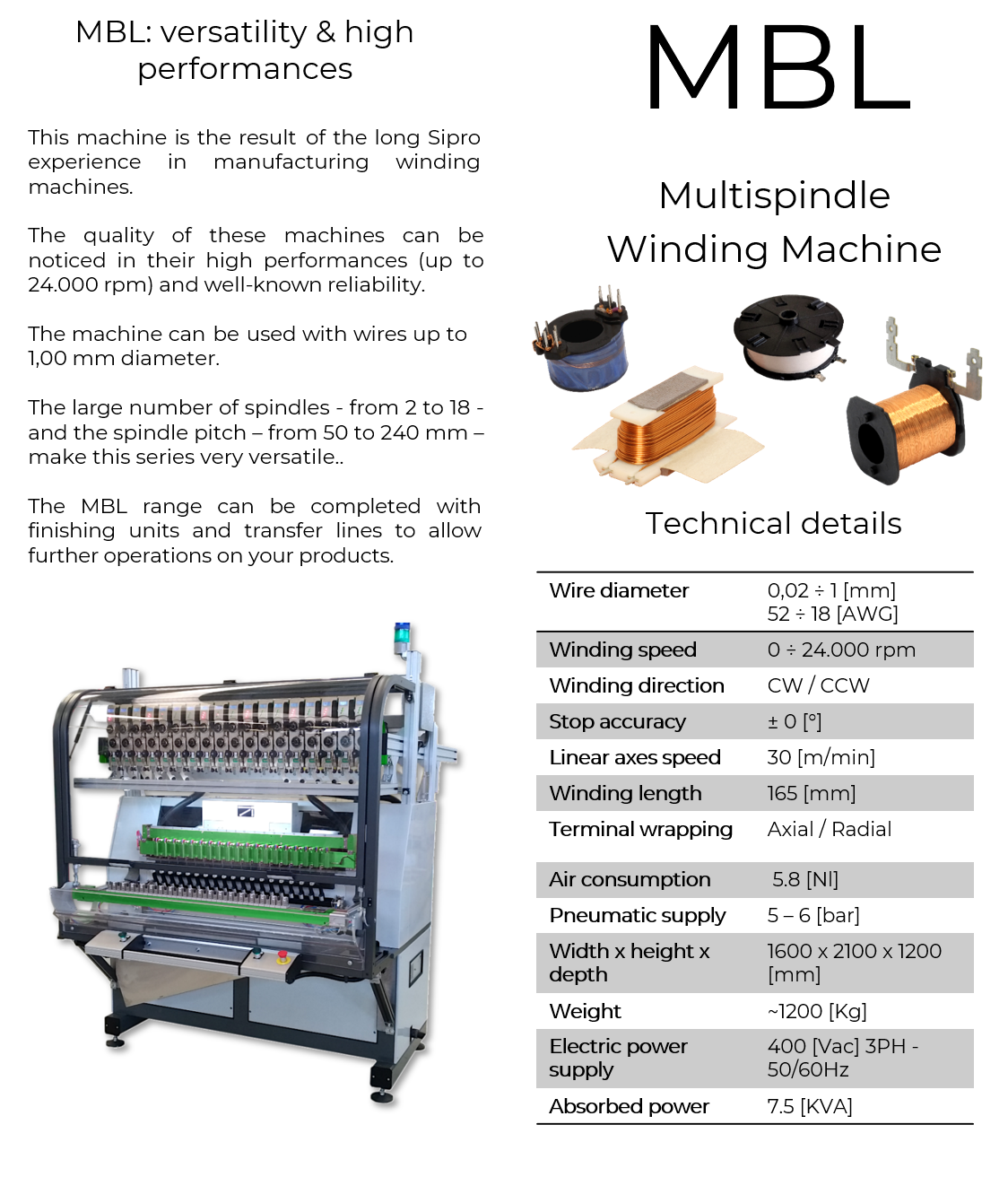

  • MBL - MEDIUM DUTY - : wire diam. 0.02-1.0 [mm] - spindle no. 2..18 , spindle pitch 50..240 [mm]
  • MBT - HEAVY DUTY - : wire diam.0.1-2.65 [mm] - spindle no. 2..8 , spindle pitch 160..480 [mm]



  BWM   MBL   MBT





mono_1 mono_2 mono_3 mono_4 mono_5 mono_6
